Ordering Instructions

Photos and Instructions to Order Hoofwings

Before you begin, please know we appreciate what goes into purchasing what we believe are the best boots for your horse. Thank you!

Note:When possible, have someone take a photo as each measurement is being done. Please provide a photo of the bottom of at least one hoof and a photo of the whole horse. Thank you.

What You'll Need & Instructions

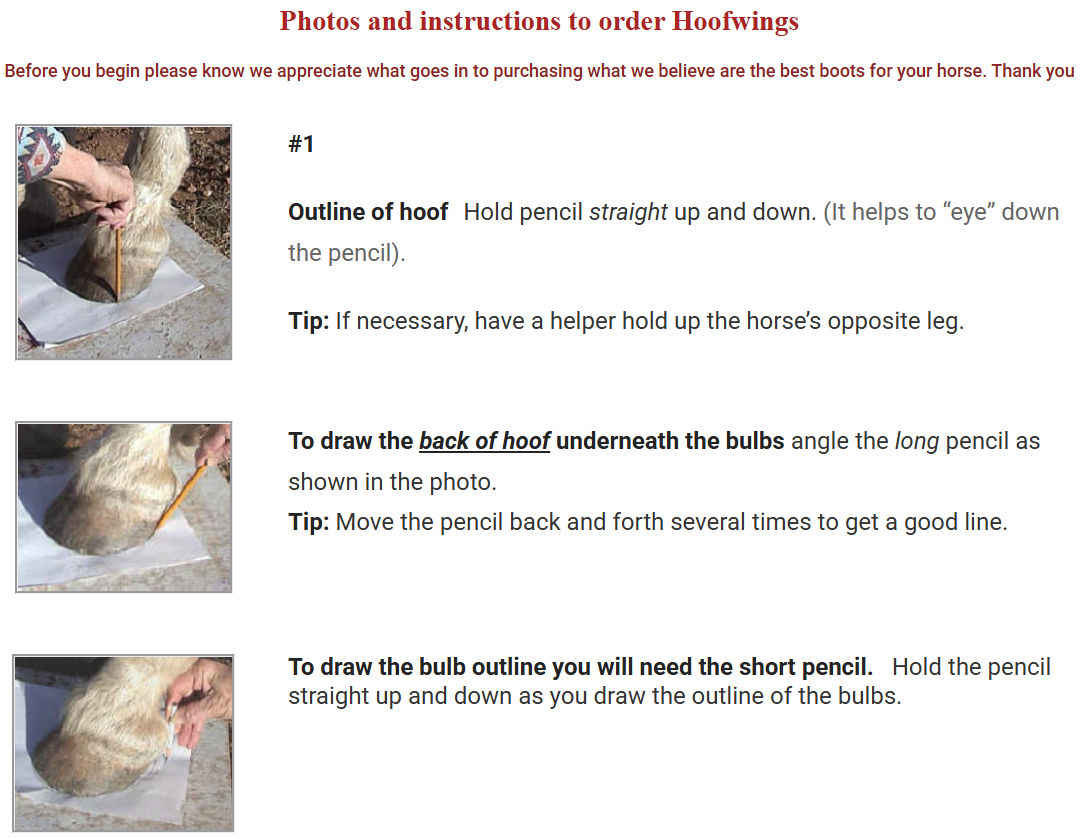

1Trace the Hoof Outline

Place the hoof on a piece of paper and trace around it carefully. The outline must be accurate — it is used to determine which Hoofwing base will provide the best fit.  Outlines can be scanned and emailed or mailed.   A photo showing the width and length measurememts of the bottom of the hooves is, in most cases acceptable.  Tip:  When your horse's hoof is on the paper, have a helper hold up the opposite leg.

Instructions for tracing a horse hoof outline on paper

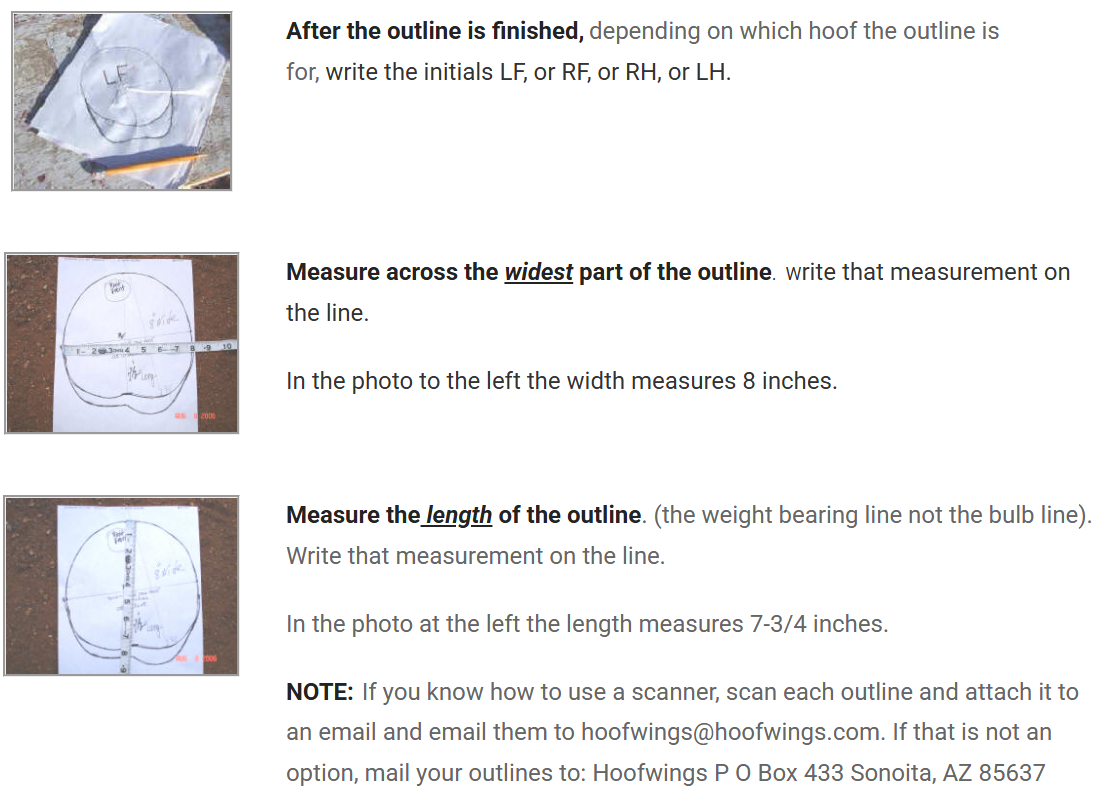

2Width & Length Measurements

Measure the widest point of the hoof (width) and the longest point from toe to heel (length). Record both measurements in inches. Photos of measurements may be sent via email or text.

3Wing & Side Measurements

Measure from the widest point of the hoof up the side of the hoof wall to determine the wing height needed. Also measure the side of the hoof. These measurements ensure the wing wraps correctly and stays secure.

Diagram showing how to measure the hoof wing and side height

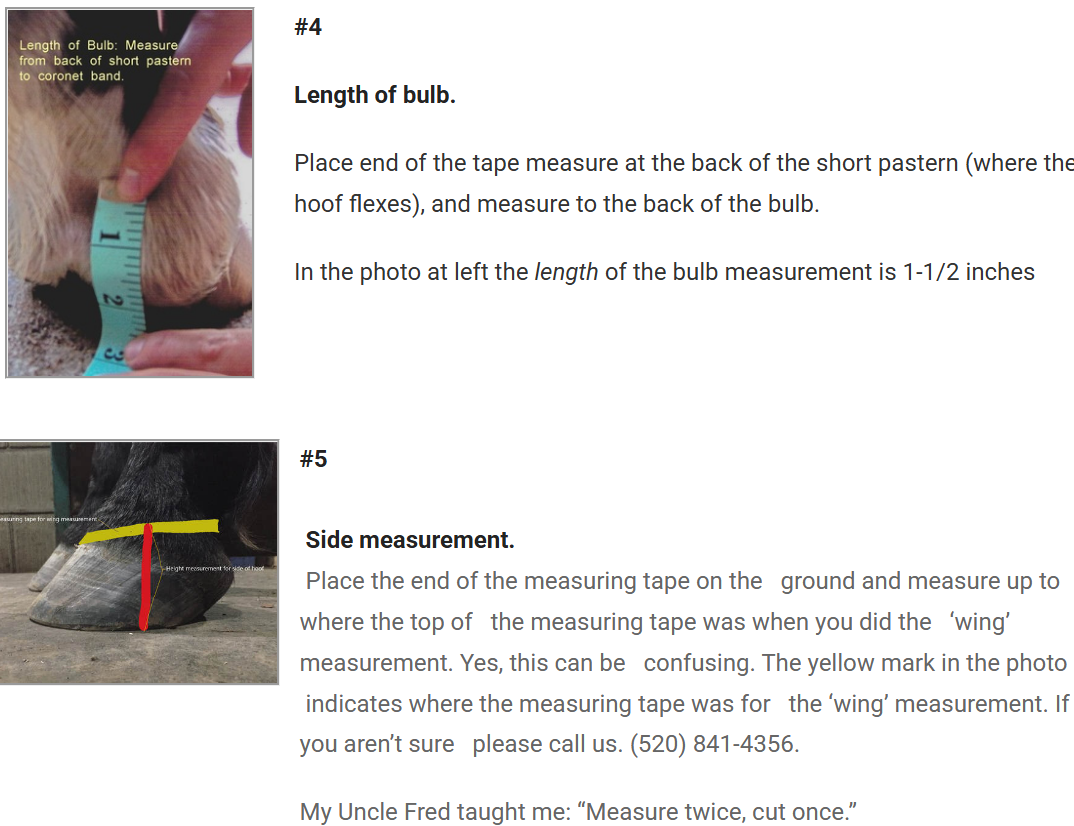

4Bulb Height & Bulb Length

Measure the height and length of the heel bulbs. These measurements are used to custom-fit the back of the boot so it holds firmly without rubbing or slipping.

Diagram showing how to measure the heel bulb height and length

Sending Your Order

  • Outlines must be scanned or mailed to us — they cannot be sent by email or text.
  • Photos of measurements and hoof bottoms may be sent via email or text.
  • Please include a photo of the bottom of at least one hoof.
  • Please include a photo of the whole horse.

Mail Address (USPS)

HoofwingsP.O. Box 433Sonoita, AZ 85637

Street Address (UPS / FedEx)

Hoofwings45 Hitchcock LaneSonoita, AZ 85637

For UPS or FedEx deliveries use the street address above.

Payment: Orders paid by check are placed in our schedule the day your check is received. Orders paid with a credit card are placed in our schedule the same day they are processed.

Questions? Please telephone us — we speak with almost all our customers.

Phone: 520-841-4356

Email: hoofwings@hoofwings.com
